2003-2008 Matrix Tein Street Basis Coilover Kit
Price Match Guarantee
Found it for less but value our service?
Found it for less but value our service?
Details

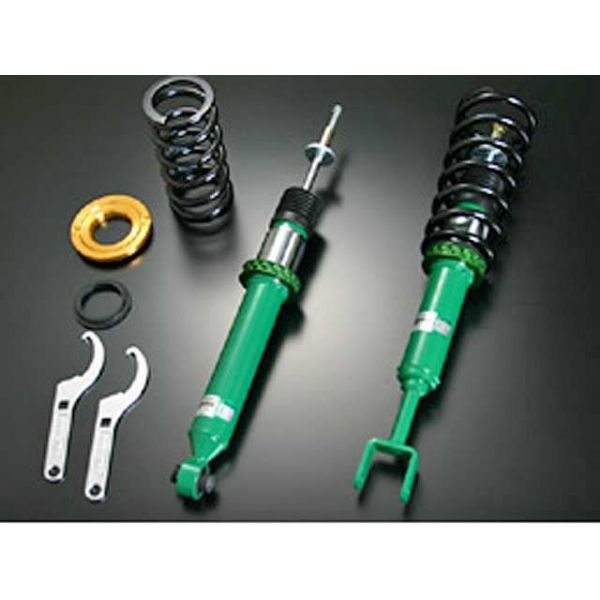

Tein Street Basis Coilovers for 2003-2008 Toyota Matrix - GSL06-8USS2
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -60
- Recommended Ride Height (inch): -2.4
- Ride Height Adjustable Range:
- Max Low (mm): -95
- Max Low (inch): -3.7
- Max High (mm): -42
- Max High (inch): -1.7
- Recommended Low (mm): -70
- Recommended Low (inch): -2.8
- Recommended High (mm): -50
- Recommended High (inch): -2
- Spring
- Rate (kgf/mm): 5
- Rate (lbs/in): 280
- SP PART#JC050-1F200-3
- Free Length (mm): 200
Rear Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -55
- Recommended Ride Height (inch): -2.2
- Ride Height Adjustable Range:
- Max Low (mm): -97
- Max Low (inch): -3.8
- Max High (mm): -33
- Max High (inch): -1.3
- Recommended Low (mm): -65
- Recommended Low (inch): -2.6
- Recommended High (mm): -45
- Recommended High (inch): -1.8
- Spring:
- Rate (kgf/mm): 3
- Rate (lbs/in): 168
- SP PART#S8L07-13030
- Free Length (mm): 235
Fitment:
- Year: 2003-2008
- Make: Toyota
- Model: Matrix
- Drivetrain: FF
- Chassis: ZZE133L
- Motor Size: 1800
- Vehicle Region: USA
Notes:
- 5Dr/4Cyl/6-Speed, Do Not Fit Awd Or Xrs Model
Features:
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
More Information
| Part Number | GSL06-8USS2 |
|---|---|
| Type of Part | Suspension |
| Engine Fitment | 1.8L (1ZZ-FE & 2ZZ-GE) |
| Length | 35 |
| Width | 12 |
| Height | 12 |
| Weight | 40.000000 |
