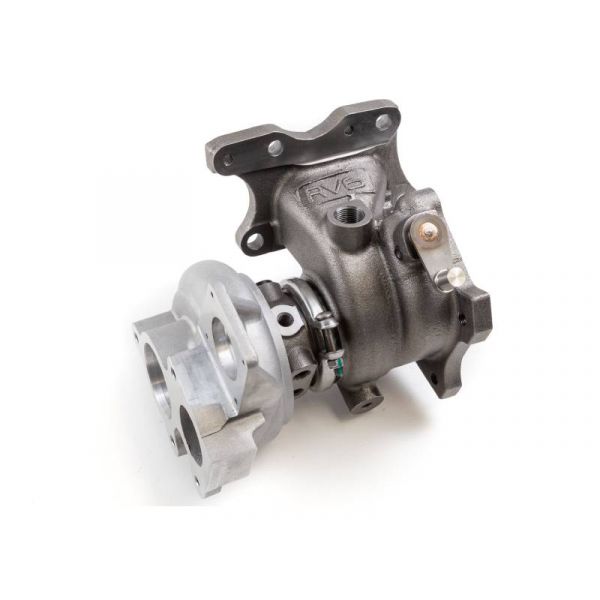

2016-2021 Civic 1.5T RV6 R365 Turbo Upgrade
The RV6 R365 turbo for the 2016-2021 Civic 1.5T has a power curve and characteristics of a ball bearing GTX2860 GEN 2 turbocharger. The test vehicle put down 345whp at 27.5psi on E30 before the factory MAP sensor and fuel system maxed out. RV6 tested several turbine and compressor wheel combinations and found this setup to be the most practical. It is able to max out the factory fuel system without running at inefficient boost levels which tend to shake turbochargers apart.
Turbo Upgrade SPECs:
Compressor-
• Inducer - 50.38mm
• Exducer - 68mm
• Blades - 10
Turbine-
• Inducer - 47mm
• Exducer - 41.4mm
• Blades - 11
• A/R 0.50
2016-2021 Civic 1.5T RV6 R365 Turbo Upgrade Features:
• Direct drop in design
• Optimized housings made from scratch
• Oversized journal bearing
• Oversized thrust bearing for high loads
• Light weight billet compressor wheel
• Inconel Alloy Turbine wheel
• Optimized FEA analysis design
• One year hassle free warranty
*This turbo will require thicker 0W-30 or 5W-30. The reasoning is that running increased boost pressures on a small frame turbocharger puts significant load on the thrust bearing. The thicker oil will offer better protection for the engine and turbocharger at higher power levels.
**Professional installation recommended.
***Custom Tune required.
More Information
| Part Number | R365_TURBO_CIVICX |
|---|---|
| Type of Part | Turbo Upgrades |
| Engine Fitment | 1.5T |
| Length | 12 |
| Width | 12 |
| Height | 12 |
| Weight | 20.000000 |
