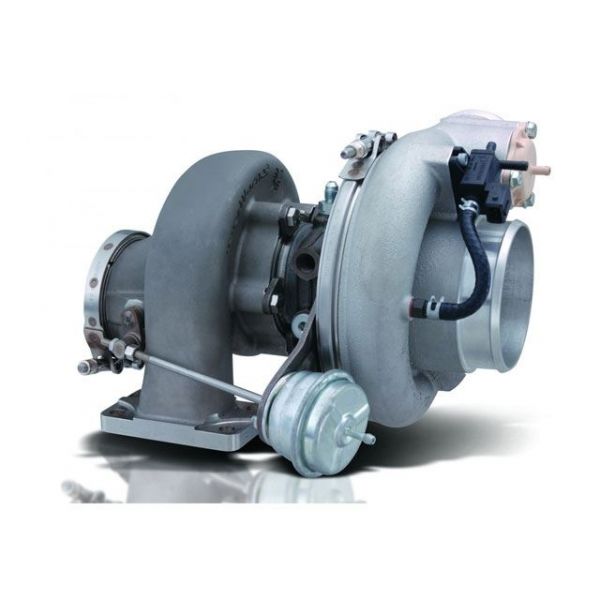

BorgWarner EFR 9174 T3 .83ar IWG Turbocharger
Compressor Specifications
- Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
- Compressor Wheel OD (exducer): 91mm
- Compressor Wheel Inducer: 68mm
- Max Flow Rate: 95 lb/min
- Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
- Compressor Housing: 4" inlet, 2.5" hose coupler outlet.
Turbine Specifications - T3, Single Scroll, .83AR, Internally Wastegated
- Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
- Turbine Wheel OD (Inducer): 74mm
- Turbine Wheel Enducer: 65mm
- Turbine Outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos
- Stainless Steel Investment Cast Housing
Features
- Dual Row Ceramic Ball Bearings - lowest friction and fastest spool/response, most extreme durability, built-in oil control orifice - (aka oil restrictor) **no restrictor can be used with EFR turbos
- Watercooled Center Section - watercooling is recommended, 14mm banjo bolts
- Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
- Boost Control Solenoid Valve Integrated to Compressor Housing
- Integrated Speed Sensor mounting provisions
- Iron CHRA
Applicable Part Numbers
- 12919097002, 12919097000, 12741008000
Borg Warner 9174 EFR Turbo 600-1000 HP. Borg Warner 9174 EFR Turbo is engineered to support huge power levels yet spool fast enough for professional time attack teams. The 74mm Gamma-Ti turbine wheel is the optimal match for the 68mm inducer / 91mm exducer FMW compressor wheel and is capable of 95lb/min airflow and 45+psi boost. This is one of the most exciting turbos in the EFR lineup for the high-power addicts. This turbo has the largest EFR compressor housing and is ideal for use in single turbo applications for the 600-1000hp range, or as twin turbo applications >1400+hp. Ceramic Ball Bearing only, watercooling optional (recommended)
Borg Warner's latest release, the EFR (Engineered for Racing) Series turbochargers. EFR is currently the most advanced turbo of its type engineered for the performance aftermarket. Crammed full of attributes that appeal to the performance car enthusiast, EFR is at the pinnacle of what can be done with the current state of the art.
The EFR line of turbos was born out of an internal BorgWarner Turbo Systems program labeled Advanced Aftermarket Products or AAP.
The result is the new EFR (Engineered for Racing) line of turbos from BorgWarner. These turbos contain a bevy of key attributes such as Gamma Ti turbine wheels, dual ceramic ball bearing cartridges and investment cast stainless steel turbine housings. Collectively, those features help give the EFR line its innovative appeal and will provide a breakthrough experience in durability, device responsiveness and installer/user satisfaction.
More Information
| Part Number | 12919097002, 12919097000, 12741008000 |
|---|---|
| Type of Part | EFR 9174 (1000HP) |
| Horsepower Gains | 600 - 1000 HP |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 28.000000 |
