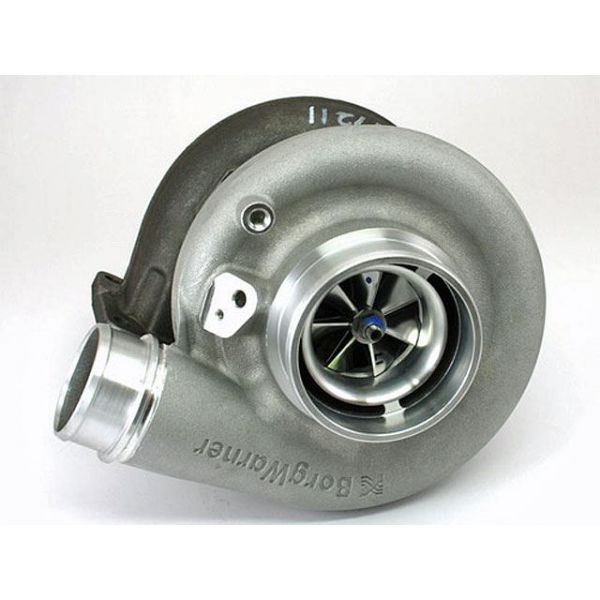

Borg Warner S362SX-E – 61.44mm Enhanced S300SX-E 8376
Price Match Guarantee
Found it for less but value our service?
Found it for less but value our service?
Details
BorgWarner 61.44mm S300SX-E 8376 aka S362 SX-E - 13009097056
This is our all time best selling journal bearing turbo. The all new ‘SX-Enhanced’ turbos redefine performance and value for modern turbochargers. Comparable in size to GT35 or precision 62, the SXE utilizes BorgWarner’s latest generation billet compressor wheels, and uprated journal bearings with 360 degree thrust assemblies. The new 61.44mm Inducer SXE turbo is the updated performance replacement for S360, S362 and 63mm FMW turbos.
Packaged in a purpose built SX-E compressor housing, SXE turbos utilize a ported shroud anti-surge inlet and speed sensor port. It is paired with traditional Airwerks 76mm Inconel turbine and flexible housing options. Smaller overall dimensions than the EFR8374 and higher airflow rates make this an excellent match for high-boost and high-power applications. Oil-Cooled Journal Bearing only.
Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 83.47mm
Compressor Wheel Inducer: 61.44mm
Max Flow Rate: 78 lb/min
Max Recommended Turbo Shaft Speed: 128136 RPM
Compressor Housing Connections:
Inlet: 4.0″ Hose Coupler
Outlet: 2.5″ Hose Coupler
Turbine Specifications
Turbine Type: Inconel S300SX Turbine Wheel
Turbine Wheel OD: 76mm
Housing Material: D5S sandcast
Housing Size and A/R ratio: S300SXE 8376 is available in three (3) different turbine housing configurations:
0.88 A/R T4 Single Scroll
0.91 A/R T4 Twin Scroll
1.00 A/R T4 Twin Scroll
Turbine outlet: 3″ Marmon or Optional 3″ V-Band Upgrade ($150)
BorgWarner SX-E Turbo Features:
Available as a complete turbo -or- supercore (no turbine housing) to retrofit existing Airwerks installations.
Forged milled compressor wheels with Optimized compressor blade aerodynamics
all-new severe duty 360 degree thrust bearing
Compressor cover integrated speed sensor port and pre-machined boost port
Flexible compressor cover outlet options: coupler or vband
Interchangeable with existing Airwerks turbine housings for plug-and-play upgrades
More Information
| Part Number | 13009097056 |
|---|---|
| Type of Part | SX-E Series |
| Length | 15.0 |
| Width | 15.0 |
| Height | 15.0 |
| Weight | 35.000000 |
