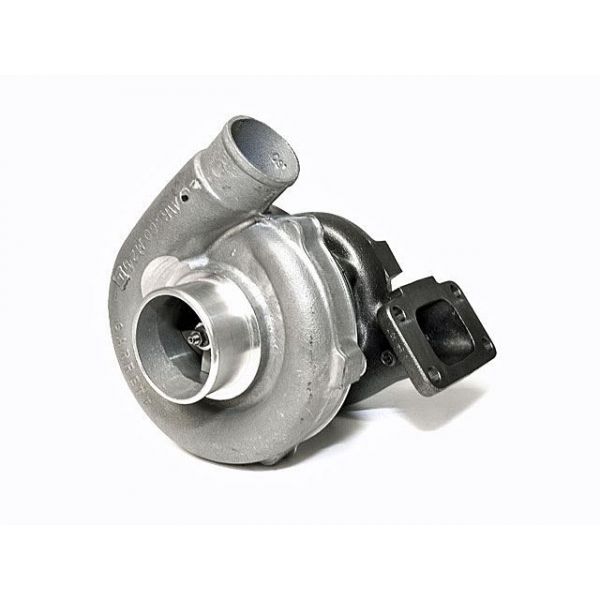

Garrett Ball Bearing T3 T04E-60 Trim Stage 3 Turbo
Price Match Guarantee
Found it for less but value our service?
Found it for less but value our service?
Details
Dual ball bearing Garrett T3/T4E, T04E 60 trim compressor with 2.75" inlet and 2" outlet E Compressor Housing or the optional 4" inlet Surge Porting. Stage III turbine wheel with T31 4 bolt. Uses ATP-OIL-021 oil inlet fitting. T3/4 drain flange. Coolant in/out required (14mm threads - same as GT series ball bearing). Great 500HP turbo. Available A/R, .48, .63, .82
This unit is usually in stock and ships withing 1-2 days.
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| $50 Extra | Divided T3 | V-Band | .78/1.06 | External Wastegate |  |
| 5 Bolt Option $50 Etxra | T3 | 4 or 5 Bolt | .48/.63/.82 | External Wastegate |  |
| No Extra Cost | T25 | 4 Bolt | .72 | External Wastegate |  |
| $50 Extra | Divided T3 | V-Band | .82/1.06 | External Wastegate |  |
| $145 Extra | T3 | Cosworth 3-Bolt | .72 | Internal Wastegate |  |
More Information
| Part Number | 757197-5003 |
|---|---|
| Part Includes | |
| Type of Part | T Series |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 35.000000 |
Reviews
Fitment
Dual ball bearing Garrett T3/T4E, T04E 60 trim compressor with 2.75" inlet and 2" outlet E Compressor Housing or the optional 4" inlet Surge Porting. Stage III turbine wheel with T31 4 bolt. Uses ATP-OIL-021 oil inlet fitting. T3/4 drain flange. Coolant in/out required (14mm threads - same as GT series ball bearing). Great 500HP turbo. Available A/R, .48, .63, .82
This unit is usually in stock and ships withing 1-2 days.
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| $50 Extra | Divided T3 | V-Band | .78/1.06 | External Wastegate | |
| 5 Bolt Option $50 Etxra | T3 | 4 or 5 Bolt | .48/.63/.82 | External Wastegate | |
| No Extra Cost | T25 | 4 Bolt | .72 | External Wastegate | |
| $50 Extra | Divided T3 | V-Band | .82/1.06 | External Wastegate | |
| $145 Extra | T3 | Cosworth 3-Bolt | .72 | Internal Wastegate | |
