Details
Garrett G42-1200 G series Ball Bearing Turbo - 1.01AR V-Band/V-Band - 879779-5007S, 860778-5004S, 757707-0011
Product Description:

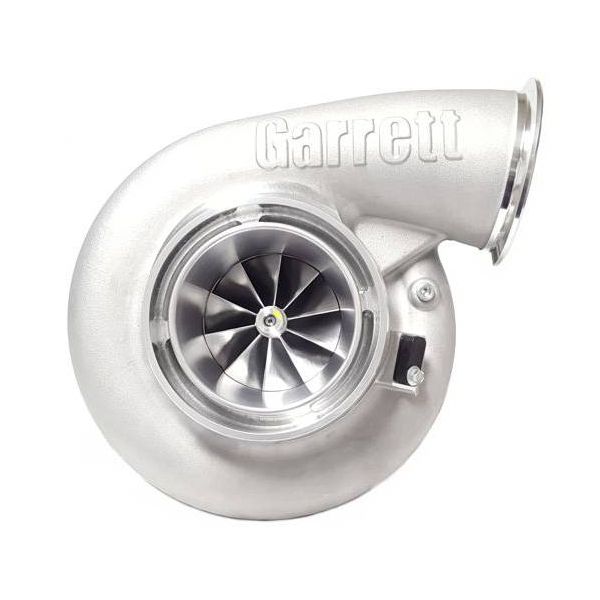

Garrett® G42-1200 turbo assembly kit with 1.01 A/R v-band inlet/outlet turbine housing. Capable of 1200HP!
Product Features:
Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
Low inertia compressor wheel resulting in faster boost response
New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
Engineered with inconel super alloy to withstand operating temperatures up to 950C
Product Specifications:
Compressor Wheel Inducer: 73mm
Compressor Wheel Exducer: 91mm
Compressor Wheel Trim: 65
Compressor Housing A/R: 0.85
Turbine Wheel Inducer: 82mm
Turbine Wheel Exducer: 75mm
Turbine Wheel Trim: 84
Garrett Part Numbers:
879779-5007S, 860778-5004S, 757707-0011
More Information
| Part Number | 879779-5007S, 860778-5004S, 757707-0011 |
|---|---|
| Type of Part | G Series |
| Length | 18 |
| Width | 18 |
| Height | 18 |
| Weight | 35.000000 |
| G Series Horsepower Range | G42-1200 73mm (475-1200HP) |
