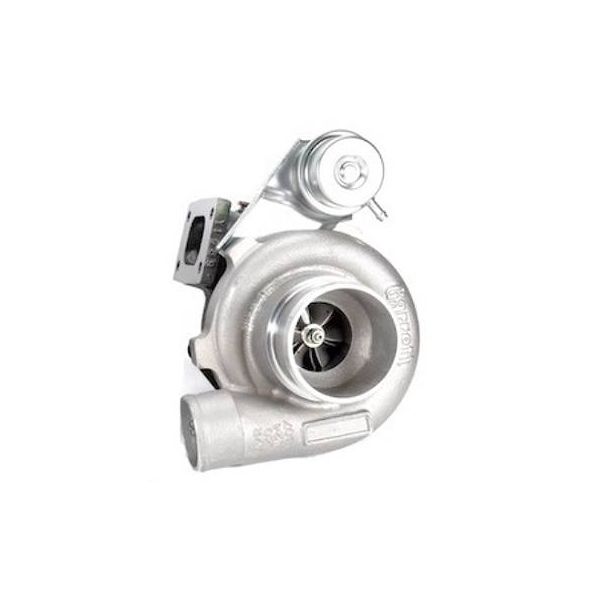

Garrett GT2860RS (aka GT28RS) Ball Bearing Turbo
Dual Ball Bearing GT28RS turbo assembly with T25 style turbine inlet. Comes with internal wastegate pre-assembled. This turbo is great for small displacement engines up to 2.2L and has the ultimate spool up time compared to other units. This turbo has a flow capacity of about 350HP.
Compressor Wheel Exducer: 60 mm
Compressor Wheel Inducer: 47 mm
Compressor Wheel Trim: 62
Turbine Wheel Inducer: 54 mm
Turbine Wheel Exducer: 47 mm
Turbine Wheel Trim: 76 trim
Applicable Garrett Part Numbers: 836026-5013S, 739548-5001S, 739548-5005S, 739548-5009S, 739548-5010S, 739548-5014S, 739548-0001, 739548-0005, 739548-0009, 739548-0010, 739548-0014, 739548-1, 739548-5, 739548-9, 739548-10, 739548-14
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options *also see options | |||||
| Inlet | Outlet | A/R | Type | ||
| T25 | 5 Bolt | .64/.86 | Internal Wastegate |  |
|
| T3 | 4 Bolt | .63/.82 | External Wastegate |  |
|
| T3 | 5 Bolt | .63/.82 | External Wastegate |  |
|
| K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
|
| Tial Stainless Steel V-Band | V-Band | .52/.63/.82 | External Wastegate |  |
|
| T25 | T31 V-Band | .63/.82 | External Wastegate |  |
|
| T25 | 5 Bolt | .72 | External Wastegate |  |
|
| Undivided V-Band | V-Band | .57/.72 | External Wastegate/Ni-Resist |  |
|
More Information
| Part Number | 836026-5013S, 836026-5014S, 739548-5001S, 739548-1 |
|---|---|
| Part Includes |
|
| Type of Part | GT Ball Bearing |
| Horsepower Gains | 350 HP |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 30.000000 |
