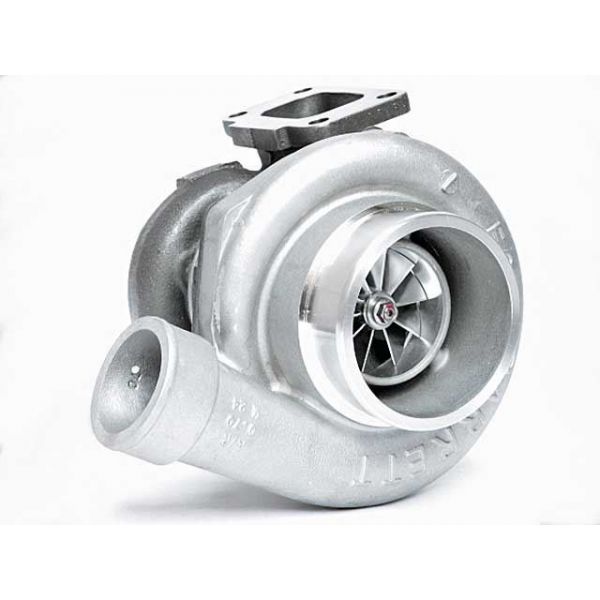

Garrett GTW3684JB (aka GTW6262JB) Journal Bearing Turbo - 841297-5002S
PRODUCT DESCRIPTION:
GTW3684JB (aka GTW6262JB) journal bearing turbo. 750HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6262 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 62.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 71
* Turbine Wheel Inducer: 71.0mm
* Turbine Wheel Exducer: 61.9mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| Inlet | Outlet | A/R | Type | ||
| T3 | 4 or 5 Bolt | .63/.82 | External Wastegate |  | |
| T3 | T31 V-Band | .63/.82 | External Wastegate |  | |
| Divided T3 | V-Band | 1.06 | External Wastegate |  | |
More Information
| Part Number | 841297-5002S |
|---|---|
| Type of Part | GTW Series |
| Horsepower Gains | 750 |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 25.000000 |
