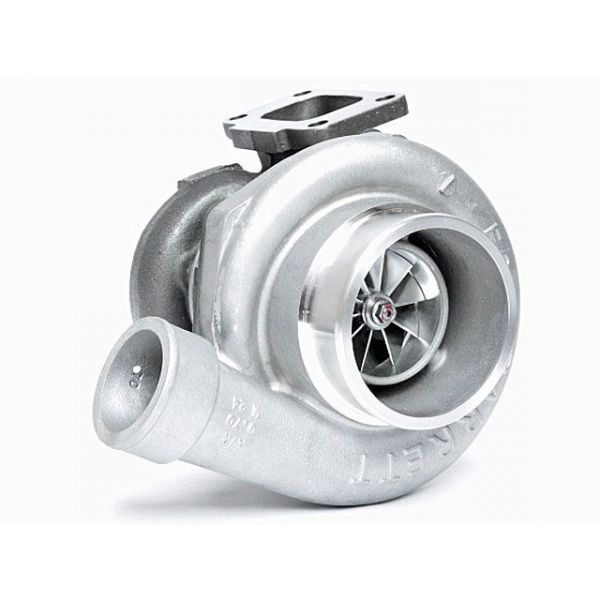

Garrett GTW3884JB (aka GTW6265JB) 64mm Journal Bearing Turbo
Price Match Guarantee
Found it for less but value our service?
Found it for less but value our service?
Details
Garrett GTW3884JB (aka GTW6265JB) 64mm Journal Bearing Turbo - 841297-5004S
PRODUCT DESCRIPTION:
GTW3884JB (aka GTW6465JB) journal bearing turbo. 900HP potential flow.
GTW Series - Garrett's Performance solution to the popular 6466 size turbo. Great performance at a competitive price!
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 64.3mm
* Compressor Wheel Exducer: 84.4mm
* Compressor Wheel Trim: 58
* Turbine Wheel Inducer: 74.2mm
* Turbine Wheel Exducer: 64.6mm
* Turbine Wheel Trim: 76
* Compressor Housing is T04S Frame with 4" inlet, 2.5" outlet, and built-in & machined anti-surge.
APPLICATION NOTES:
* NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
* External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
* GTW Series Journal Bearing CHRA DOES NOT use same oil feed and oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
OIL FITTINGS, FLANGES, AND COMPONENTS:
* Oil feed flange: Product Code: ATP-FLA-041
* Oil feed gasket: Product Code: ATP-GSK-026
* Oil drain flange: Product Code: ATP-FLA-042
* Oil drain gasket: Product Code: ATP-GSK-027
* 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
* 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
TURBINE HOUSING OPTIONS:
* T3 Inlet and 4 Bolt, 2.5 inch Outlet (Available in .63, or .82 A/R)
* T3 Non-Divided Inlet and machined V-band 2.5 inch Outlet (Available in .63, .82, or 1.08 A/R)
* T3 Non-Divided Inlet and welded V-band 3.0 inch Outlet (Available in .63, .82, or 1.08 A/R)
* T3 Divided inlet and 4 Bolt, 3.0 Inch Outlet (Available in 1.16 A/R)
* T3 Divided inlet and 3.0 Inch V-Band Outlet Adapter (Available in 1.16 A/R)
* T3 Divided inlet and V-Band, 3.0 inch Outlet (Available in .78 or 1.06 A/R)
* T3 Inlet and 5 Bolt Ford Style Outlet (Available in .63, or .82 A/R)
* T4 Inlet and V-Band, 3.0 inch Outlet (Available in .68, .81 or .96 A/R)
* T4 Divided inlet and V-Band, 3.0 inch Outlet (Available in .70, .84, 1.00, 1.15 A/R)
* V-Band Inlet (T3 machined) and 2.5 inch V-Band Outlet (Available in .63 or .82 A/R). NOTE: V-Band Inlet Clamp & Manifold Flange (Product Code: CLC-CLA-040)
APPLICABLE GARRETT PART NUMBERS:
841297-5004S
CLASS LEGAL IN THE FOLLOWING RACE ORGANIZATION CATEGORIES:
* Import Face-Off: Forced Induction Sport Class (AWD manual transmission on DOT tires; RWD with out of manufacturer motor swap)
More Information
| Part Number | 841297-5004S |
|---|---|
| Type of Part | GTW Series |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 25.000000 |
