Details

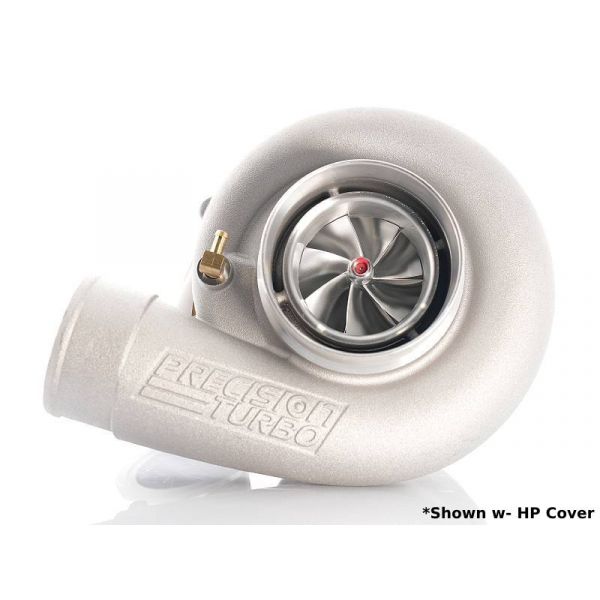

Precision PTE NEXT Gen 6466 Ball Bearing Turbos - 1000HP
Next Gen 6466 Turbo Features:
• Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618 aluminum closed die forging for strength and optimized airflow
• Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers
• High flow / highly efficient 66mm turbine wheel
• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability
• Available in an All-New SCP compressor cover w/ 4” inlet and 2-1/2”outlet and for the first time in HP compressor cover w/ 4” inlet and 3”outlet for maximum air flow
• No price increase over Gen 2
Next Gen 6466 Turbo Specifications:
Compressor Wheel Inducer: 64mm
Compressor Wheel Exducer: 86mm/ 88.1mm Extended Tip
Turbine Wheel Inducer: 74mm
Turbine Wheel Exducer: 66mm
Ported S Cover PT6466 Part Numbers:
27304210089 - NEXT GEN PT6466 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .63 A/R
27304210099 - NEXT GEN PT6466 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .63 A/R
27304210109 - NEXT GEN PT6466 BB SCP CC W/ T3 INLET/4-BOLT DISCHARGE .82 A/R
27304210119 - NEXT GEN PT6466 BB SCP CC W/ T3 INLET/V-BAND DISCHARGE .82 A/R
27304210139 - NEXT GEN PT6466 BB SCP CC W/ T3 V-BAND IN/OUT .82 A/R
27304210149 - NEXT GEN PT6466 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
27304210179 - NEXT GEN PT6466 BB SCP CC W/ T3 INLET/5-BOLT DISCHARGE .63 A/R
27304210189 - NEXT GEN PT6466 BB SCP CC W/ T3 INLET/5-BOLT DISCHARGE W HOLE .63 A/R
27304210199 - NEXT GEN PT6466 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .58 A/R
27304210209 - NEXT GEN PT6466 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .68 A/R
27304210219 - NEXT GEN PT6466 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
27304210229 - NEXT GEN PT6466 BB SCP CC W/ T4 INLET/V-BAND DISCHARGE .96 A/R *1.27 A/R Option NOW Available!
27304210239 - NEXT GEN PT6466 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 84 A/R
27304210249 - NEXT GEN PT6466 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
27304210259 - NEXT GEN PT6466 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.15 A/R
27304210269 - NEXT GEN PT6466 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.32 A/R
27304210567 - NEXT GEN PT6466 BB SCP CC W/ BUICK 3-BOLT INLET .63 A/R STD ACT
27304210568 - NEXT GEN PT6466 BB SCP CC W/ BUICK 3-BOLT INLET .63 A/R HD ACT
27304210569 - NEXT GEN PT6466 BB SCP CC W/ BUICK 3-BOLT INLET .63 A/R
27304210577 - NEXT GEN PT6466 BB SCP CC W/ BUICK 3-BOLT INLET .85 A/R STD ACT
27304210578 - NEXT GEN PT6466 BB SCP CC W/ BUICK 3-BOLT INLET .85 A/R HD ACT
27304210579 - NEXT GEN PT6466 BB SCP CC W/ BUICK 3-BOLT INLET .85 A/R
27304210799 - NEXT GEN PT6466 BB SCP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
27304210889 - NEXT GEN PT6466 BB SCP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .70 A/R
27304210999 - NEXT GEN PT6466 BB SCP CC W/ NO TURBINE HOUSING
Ported H Cover PT6466 Part Numbers:
27307210089 - NEXT GEN PT6466 BB HP CC W/ T3 INLET/4-BOLT DISCHARGE .63 A/R
27307210099 - NEXT GEN PT6466 BB HP CC W/ T3 INLET/V-BAND DISCHARGE .63 A/R
27307210109 - NEXT GEN PT6466 BB HP CC W/ T3 INLET/4-BOLT DISCHARGE .82 A/R
27307210119 - NEXT GEN PT6466 BB HP CC W/ T3 INLET/V-BAND DISCHARGE .82 A/R
27307210139 - NEXT GEN PT6466 BB HP CC W/ T3 V-BAND IN/OUT .82 A/R
27307210149 - NEXT GEN PT6466 BB HP CC W/ T3 STAINLESS V-BAND IN/OUT .82 A/R
27307210179 - NEXT GEN PT6466 BB HP CC W/ T3 INLET/5-BOLT DISCHARGE .63 A/R
27307210189 - NEXT GEN PT6466 BB HP CC W/ T3 INLET/5-BOLT DISCHARGE W HOLE .63 A/R
27307210199 - NEXT GEN PT6466 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .58 A/R
27307210209 - NEXT GEN PT6466 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .68 A/R
27307210219 - NEXT GEN PT6466 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .81 A/R
27307210229 - NEXT GEN PT6466 BB HP CC W/ T4 INLET/V-BAND DISCHARGE .96 A/R *1.27 A/R Option NOW Available!
27307210239 - NEXT GEN PT6466 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 84 A/R
27307210249 - NEXT GEN PT6466 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.00 A/R
27307210259 - NEXT GEN PT6466 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.15 A/R
27307210269 - NEXT GEN PT6466 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE 1.32 A/R
27307210567 - NEXT GEN PT6466 BB HP CC W/ BUICK 3-BOLT INLET .63 A/R STD ACT
27307210568 - NEXT GEN PT6466 BB HP CC W/ BUICK 3-BOLT INLET .63 A/R HD ACT
27307210569 - NEXT GEN PT6466 BB HP CC W/ BUICK 3-BOLT INLET .63 A/R
27307210577 - NEXT GEN PT6466 BB HP CC W/ BUICK 3-BOLT INLET .85 A/R STD ACT
27307210578 - NEXT GEN PT6466 BB HP CC W/ BUICK 3-BOLT INLET .85 A/R HD ACT
27307210579 - NEXT GEN PT6466 BB HP CC W/ BUICK 3-BOLT INLET .85 A/R
27307210799 - NEXT GEN PT6466 BB HP CC W/ T3 STAINLESS V-BAND IN/OUT 1.05 A/R
27307210889 - NEXT GEN PT6466 BB HP CC W/ T4 DIVIDED INLET/V-BAND DISCHARGE .70 A/R
27307210999 - NEXT GEN PT6466 BB HP CC W/ NO TURBINE HOUSING
More Information
| Part Number | 27304210089, 27304210099, 27304210109, 27304210119, 27304210139, 27304210149, 27304210179, 27304210189, 27304210199, 27304210209, 27304210219, 27304210229, 27304210239, 27304210249, 27304210259, 27304210269, 27304210567, 27304210568, 27304210569, 27304210 |
|---|---|
| Type of Part | Next Gen |
| Length | 13 |
| Width | 12 |
| Height | 11 |
| Weight | 25.000000 |
