TurboKits.com Matrix 1ZZ Turbo Kit
*$500 OFF, FREE BB Turbo Upgrade & FREE Boost Gauge - Ends 09/30/25
TAGS: Matrix Turbo Kit, 2003, 2004, 2005, 2006, 2007, 2008, Toyota Matrix 1ZZ-FE, TurboKits.com Kit
Price Match Guarantee
Found it for less but value our service?
Found it for less but value our service?
Details

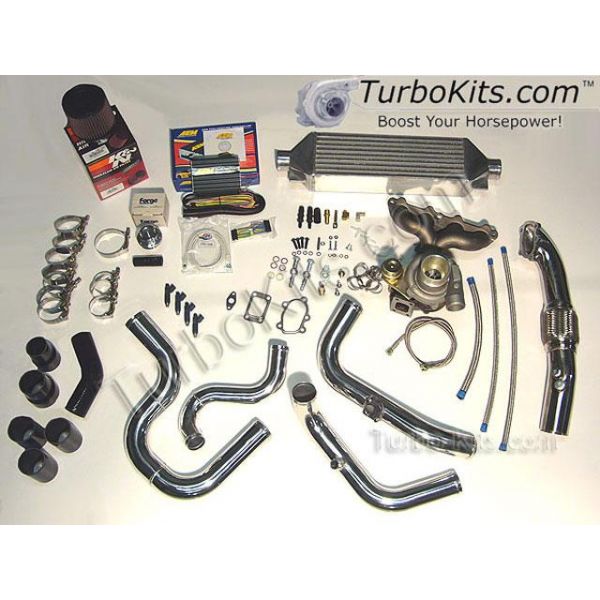

Turbo Kit for Toyota Matrix 1ZZ-FE | 2003-2008 Matrix Turbo Kit
- Custom Spec'd Billet Ball Bearing T28 Turbocharger
- High SILMoly Ductile Iron Cast 4-1 Manifold
- 3" Stainless Mandrel Bent Downpipe
- 2"-2.5" Polished Aluminum Charge Piping
- Polished Front Mount IC (6.25"x18"x3.5")
- Forge Silver Billet BOV
- K&N Air Filter
- Stainless Braided Oil/Water Feed Lines
- Stainless Braided Oil/Water Return Lines
- Black Silicone Intercooler Couplers
- Stainless T-Bolt Clamps
- All Hardware & Fittings for Install
- Step-by-Step Install Instructions
Notes:
* The kit does not include fuel and engine management. If you do not already have a system and tuning planned, please select from the options or feel free to give us a call to go over things!
* Requires small size battery
* Self wiring is not supported. Make sure you have access to the correct pinouts and a firm grasp of vehicle electronics and wiring.
* The eManage Ultimate is absolutely, positively the BEST piggyback ECU that has ever existed on earth. However, the software only runs on 32-bit PC’s, meaning you will need Windows 7 32-bit or Windows XP 32-bit (you can buy a functioning older laptop on ebay for around $100)
Custom Spec'd T28 Turbocharger
Turbo-Kits.com had a custom spec'd journal bearing turbo engineered specifically for the 1ZZ and 2ZZ applications. The T28 is both oil lubricated and water cooled and can support 300 + WHP while providing great throttle response and spool characteristics.
Cast 4 into 1 Turbo Manifold
Constructed of High SILMoly Ductile cast iron, our high flow 4 into 1 turbo exhaust manifold allows for proper heat expansion to resist cracking and warping. The durable 1/2" thick head flange, combined with the supplied steel studs, washers and nuts, insures a tight manifold seal.
3" Stainless Steel Mandrel Bent Downpipe w/ Flex Section
Our fully polished stainless steel down pipe is constructed of large diameter piping for optimum exhaust flow and HP gains. An auxiliary bung is added to the down pipe to ease the install of a wideband air/fuel ratio gauge sensor.
Air to Air Front Mount Intercooler
Fully polished from end to end, our beautifully crafted bar and plate high density front mount intercooler measures 6.25" X 18" X 3.5" (not including the cast end tanks) and fits perfectly behind the stock front bumper cover. The mounting hardware and brackets are included for ease of installation.
Mandrel Bent Polished Lightweight Aluminum Piping
Jigged for exact fit, the lightweight piping is constructed of 6061 aluminum and then polished to perfection. Each pipe is finished with a machine bead roll for a secure clamp on the couplers. A 2.5" blow through MAF pipe is included.
Re-enforced Black Silicone Couplers w/ T-Bolt Clamps
All couplers and reducer couplers are constructed of 100% re-enforced multi-layer silicone. The necessary stainless steel T-Bolt clamps are included for a complete install and secure clamping.
Forge Blow Off Valve
Because the kit vents to atmosphere, the Forge Billet BOV was chosen for its great sounding, compact design. The dual piston configuration requires little to no maintenance and eliminates the longevity issues plaguing diaphragm style valves.
K&N Air Filter
Airborn contaminates can shorten your engine life. TurboKits.com chose to include a K&N filter because of superior air filtration and flow characteristics.
Oil & Water Lines & Fittings
Proper lubrication and cooling is critical to turbo longevity. All fittings, stainless steel braided lines, and hardware are included for complete turbo oil and coolant plumbing.
Version 2.0 is the resulting evolution of years of R & D and feedback from customers who already installed V1.0. We addressed all previous concerns and have come back with an even stronger package while maintaining our competitive price.
We can upgrade any kit to GT28RS, GT2871 or GT2876 Turbos, Hydra Stand Alones, Larger FMICs, Clutches, Flywheels, Gauges, Controllers, you name it and we can probably get it for you as part of the package.
More Information
| Part Number | MAT-901-001 |
|---|---|
| Type of Part | Turbo Kits |
| Engine Fitment | 1.8L (1ZZ-FE) |
| Boost | 8-9 PSI |
| Horsepower Gains | 90-100 WHP |
| Length | 40.0 |
| Width | 20.0 |
| Height | 20.0 |
| Weight | 95.000000 |
