Tomioka Racing Turbocharger - BMW N55
Price Match Guarantee
Found it for less but value our service?
Found it for less but value our service?
Details

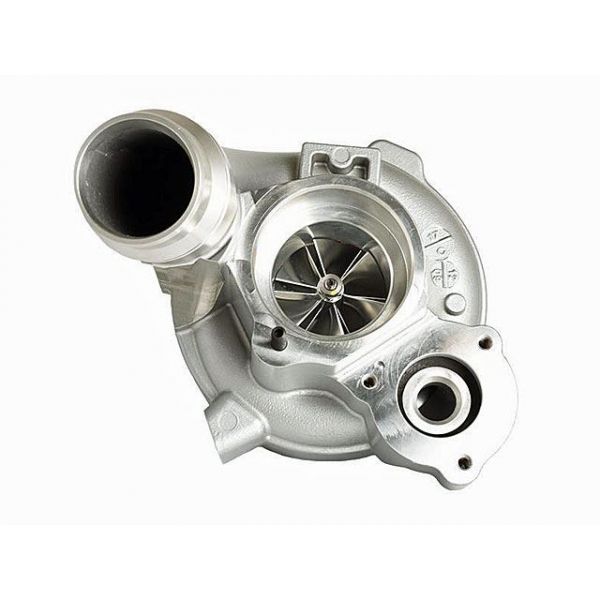

Introducing Tomioka Racing’s turbocharger upgrade for the BMW N55 engine. TR’s turbo offers a billet compressor wheel in 6+6 configuration and a larger wheel compared to the factory turbo. The increase in diameter is further matched with larger porting of the interior of the factory-sized compressor housing. It looks like a factory turbo, but contains a larger 72mm compressor wheel and longer 35mm wheel-blade to improve airflow and extract more power from the N55 motor, achieving more efficient boost. No Core exchange is required. This is a 100% bolt-on balanced replacement turbo with improved performance over the stock unit.
Turbo Characteristics:
Flange Type: Standard BMW Header Bolt-On
Compressor Wheel: 72mm Billet Compressor Wheel
Turbine Wheel: In: 50mm - Ex: 48mm
Turbine Housing: Standard (OEM Machined) - Includes Ported and Polished Inlet
Max Power: 450 HP
Features:
• 100% Bolt-On
• Large Billet Compressor Wheel
• 70mm Compressor Wheel
• Ported and Polished Inlet
• 35mm Wheel-Blade Length
• Stock Location
Kit Contents:
• Turbocharger
• Gaskets
• Hardware Kit
BMW Applications:
X3 - 2010+
X5 - 2010+
X6 - 2011+
135i - 2010+
235i - 2015+
335i - 2010+
535i GT - 2009+
535i - 2010+
640i - 2011+
More Information
| Part Number | TR-TW2001 |
|---|---|
| Type of Part | Turbo Upgrades |
| Engine Fitment | N55 |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 30.000000 |
